Lukewarm coffee and melted ice are annoying. A stainless steel vacuum flask solves this by keeping drinks hot or cold for hours.
A stainless steel vacuum flask works by using a vacuum between double walls to block heat transfer by conduction, convection, and radiation.
Let's explore how this simple yet brilliant design keeps your beverages at the perfect temperature all day long.
What is the core principle behind a vacuum flask's insulation?
Your coffee cools too fast? That's because heat escapes quickly. A vacuum flask blocks this escape route.
The core principle is insulation by eliminating all three types of heat transfer1: conduction, convection, and radiation.
Understanding Heat Transfer
- Conduction needs material contact.
- Convection needs a fluid (like air or water).
- Radiation travels as infrared waves.
The vacuum layer between stainless steel walls removes air, which blocks conduction and convection. Reflective coatings stop radiation.
"Without a medium, heat has no way to move." — Thermal Engineering Basics
How does double-walled construction prevent heat transfer?
Tired of flasks that barely insulate? The double-wall construction2 is the secret weapon.
The two-layer wall structure creates a vacuum, stopping heat from passing between the inside and outside.
Construction Highlights
- Inner and outer walls made of stainless steel.
- Air is removed from the space in between.
- Only a few contact points connect them.
| Feature | Function |
|---|---|
| Inner wall | Holds beverage |
| Outer wall | Provides structure |
| Vacuum layer | Stops conduction & convection |
The result? Maximum temperature stability.
What role does the vacuum play in keeping beverages hot or cold?
Drinks too hot or cold too soon? The vacuum layer keeps them stable.
The vacuum3 prevents conduction and convection by removing air or fluid that could transfer heat.
Why Vacuums Matter
- No particles = no heat transfer.
- Even extreme external temperatures can't pass through.
- Supports both hot and cold insulation.
This layer is the core technology inside every stainless steel insulated mug.

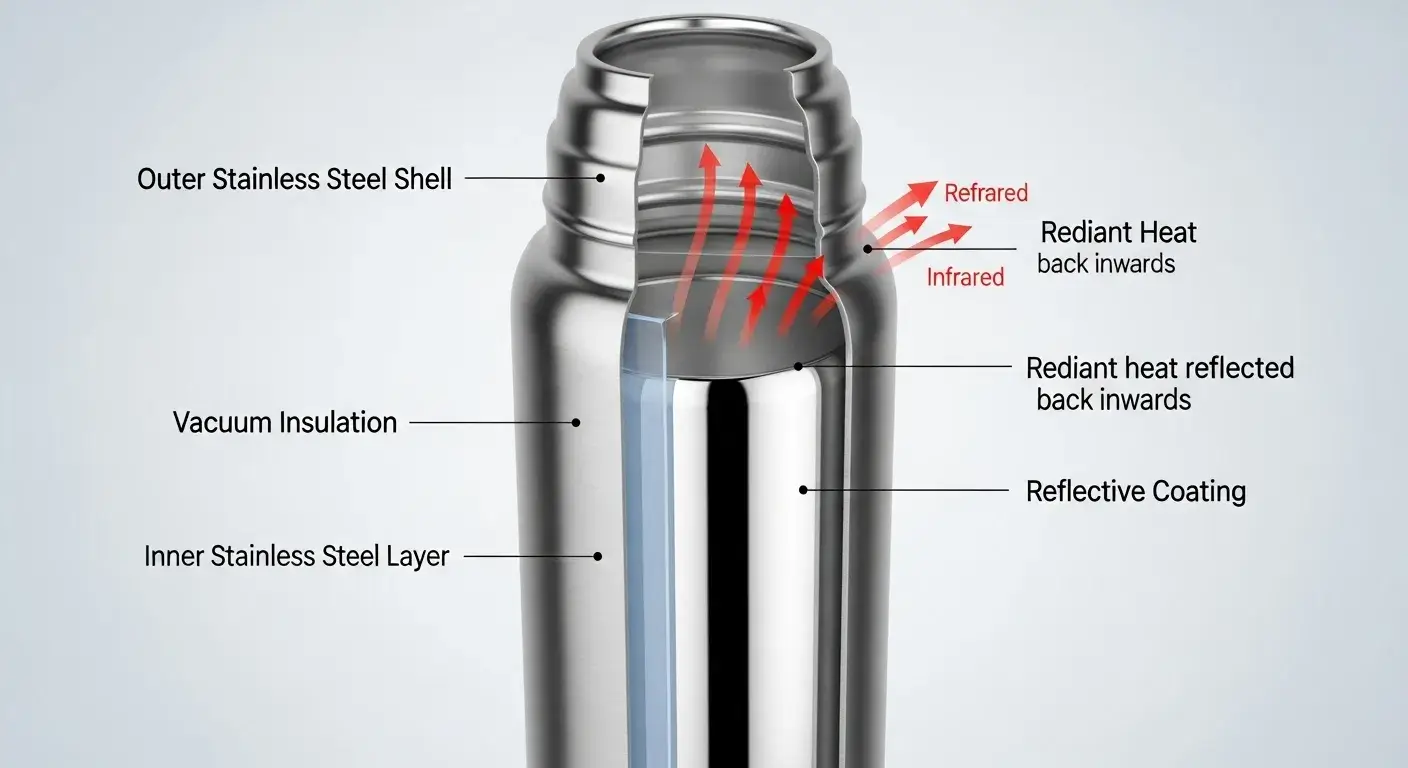

How do reflective coatings enhance a vacuum flask's performance?
Think a flask only blocks heat by vacuum? Reflective coatings4 go a step further.
These coatings reflect infrared radiation back toward the source, reducing heat loss or gain.
Radiation Reflection
- Inner walls are often silvered.
- Radiant heat from hot liquids is bounced back in.
- Cold liquids reflect external heat away.
These coatings enhance insulation, especially when other methods reach their limits.

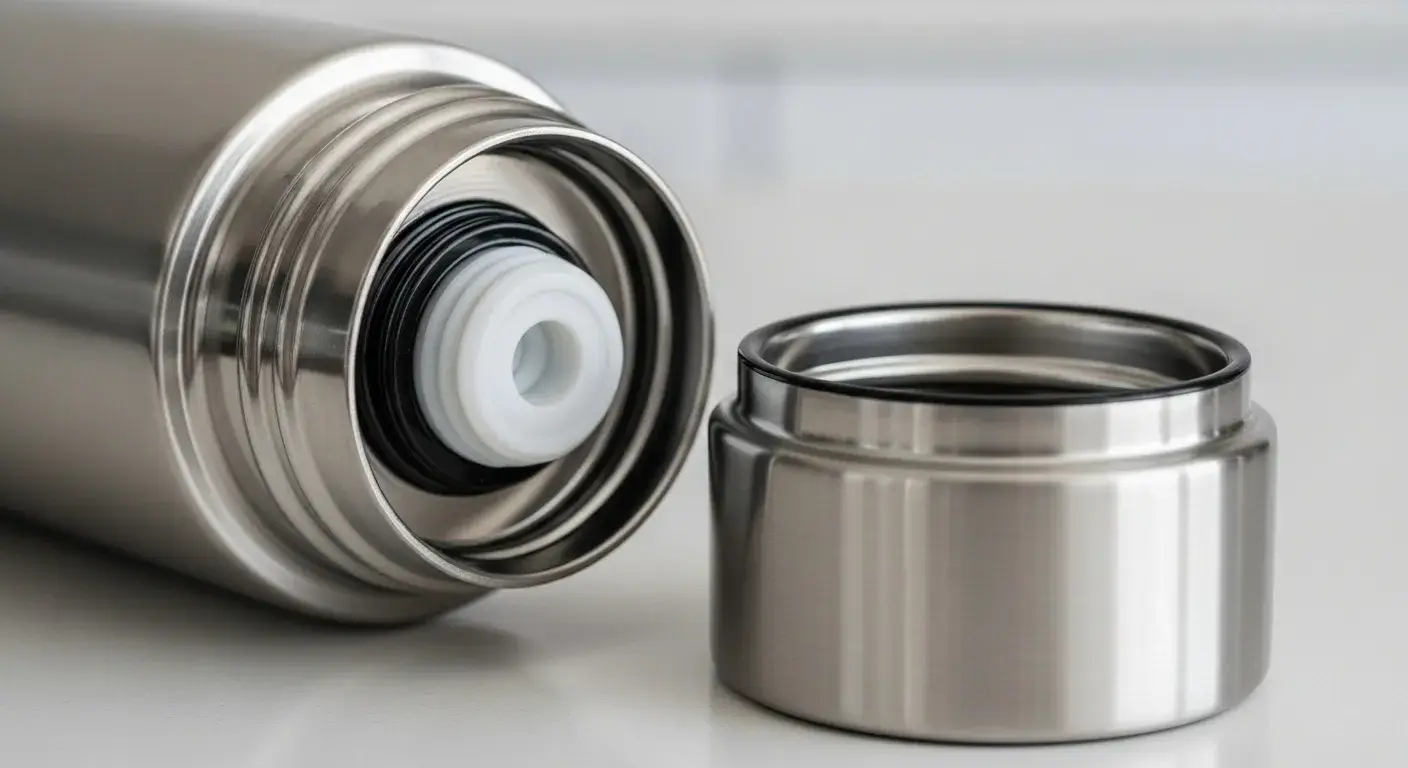

How does the lid design contribute to a vacuum flask's effectiveness?
A good body means nothing without a smart lid. Heat often escapes from the top.
Tightly sealed lids5 prevent air movement and reduce heat loss through the flask's weakest point.
Key Lid Features
- Silicone or rubber gasket
- Screw or press-seal design
- Sometimes includes vacuum-sealed caps
Without a proper lid, heat will escape no matter how good the flask walls are.

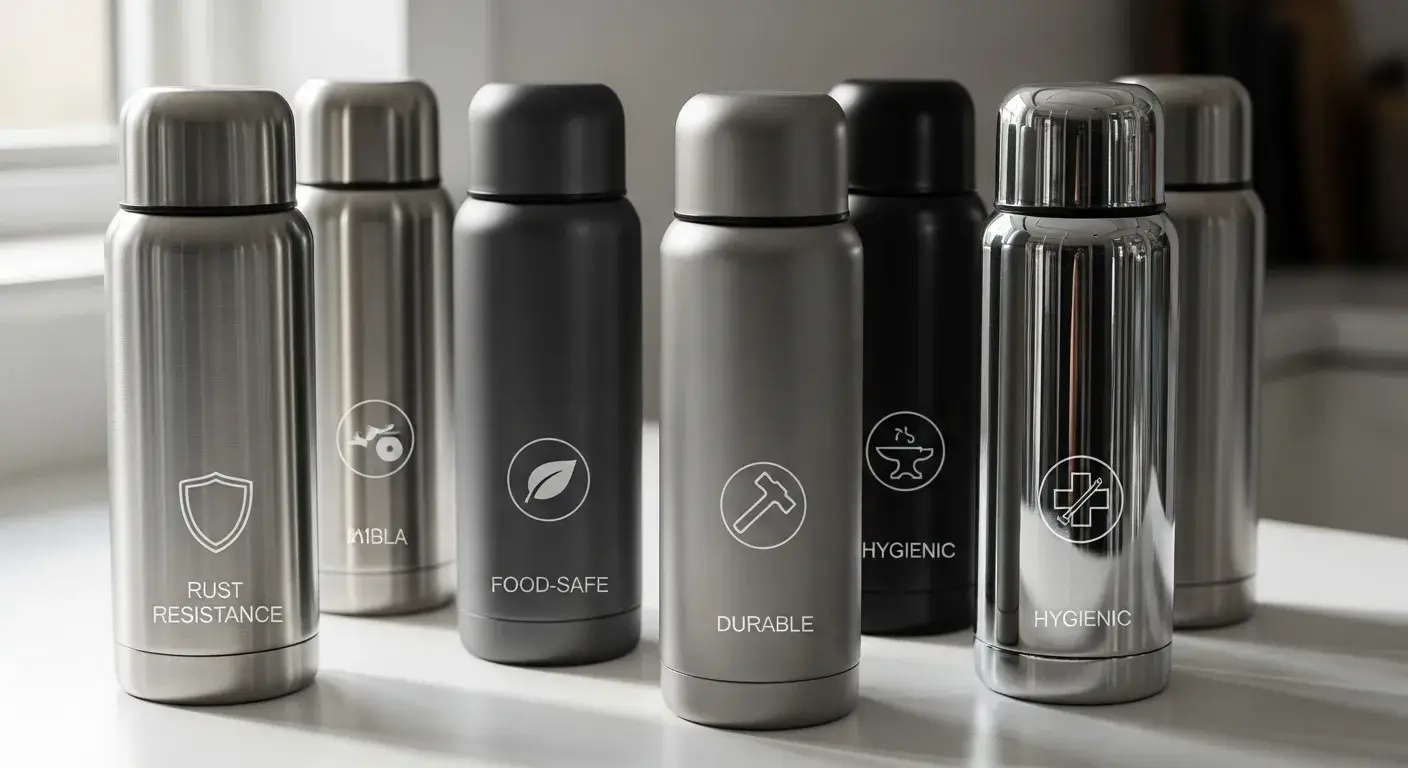

What properties of stainless steel make it ideal for vacuum flasks?
Why not use plastic or glass? Stainless steel6 wins in every way.
Stainless steel resists corrosion, handles pressure well, and has low thermal conductivity.
Benefits of Stainless Steel
- Food-safe and non-reactive
- Structurally strong for holding a vacuum
- Resists rust, even with frequent cleaning
It's also durable enough to survive drops, unlike fragile glass flasks.

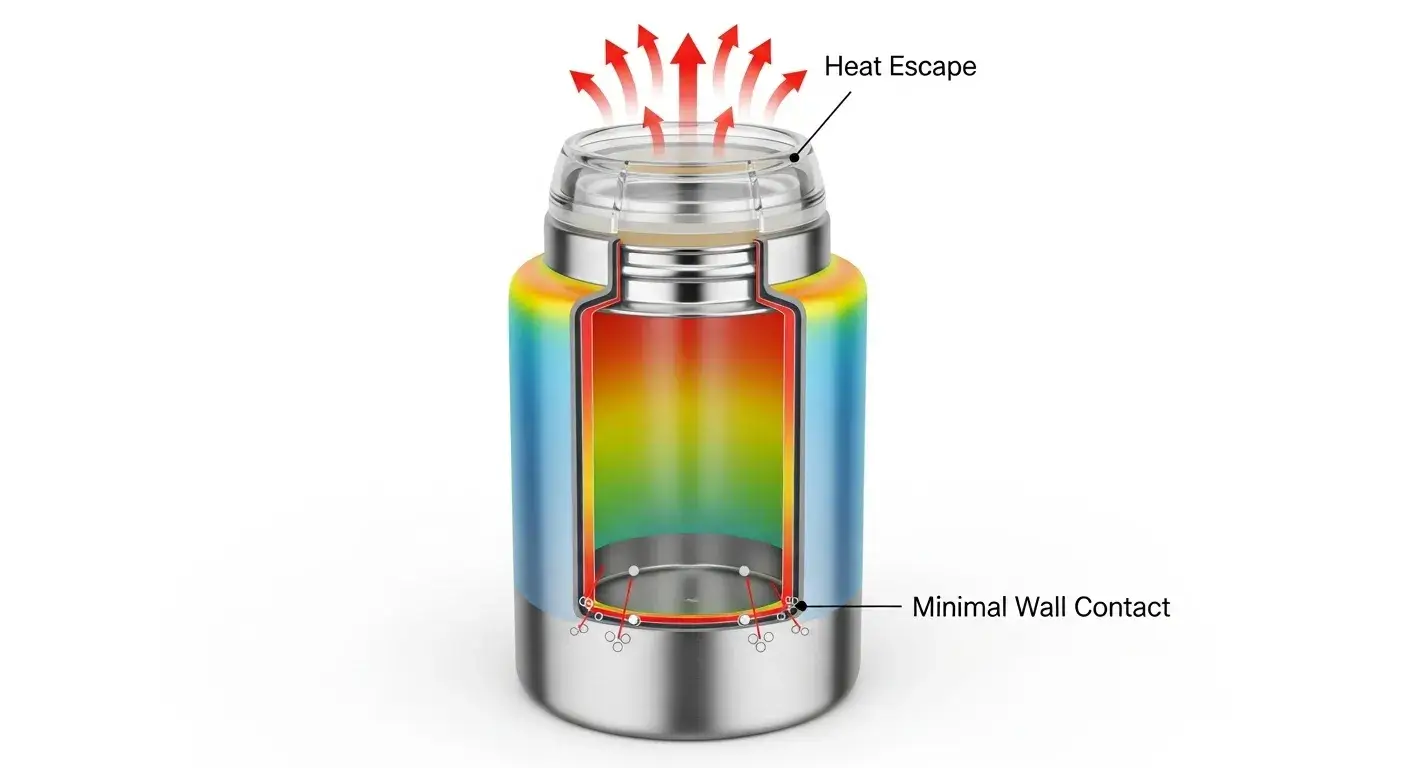

What are the limitations of vacuum flasks in maintaining temperature?
Still noticed your drink cools eventually? Even the best flasks have limits.
Most heat loss happens through the lid or structural contact points7 between the walls.
Common Limitations
- No flask is 100% insulated
- Over time, some heat will escape
- Lids and internal supports are unavoidable heat bridges
However, for 6–12 hours of stable temperature, vacuum flasks remain the top choice.
Conclusion
Stainless steel vacuum flasks stop heat transfer using vacuum layers, reflective surfaces, and sealed lids to keep drinks hot or cold.
FAQ
Q: How does a vacuum prevent heat loss?
A: The vacuum removes air, blocking conduction and convection heat transfer.
Q: Why are the insides of flasks shiny?
A: Reflective coatings reduce heat radiation, bouncing it back into the liquid.
Q: Do stainless steel flasks keep cold drinks cold too?
A: Yes, insulation works both ways—keeping cold out and cold in.
Q: What causes flasks to lose heat over time?
A: Small losses through lids and structural contacts eventually lower efficiency.
Q: Is stainless steel safe for storing drinks?
A: Yes, food-grade 304 stainless steel is rust-resistant and BPA-free.
Footnotes:
-
Understand the three fundamental methods of heat transfer—conduction, convection, and radiation—that vacuum flasks are designed to block ↩
-
Learn how the two-layer wall structure with vacuum space creates superior temperature retention in insulated bottles ↩
-
Discover the physics behind how vacuum insulation blocks heat transfer by eliminating air molecules ↩
-
See how silvered surfaces reflect infrared radiation back into the flask to minimize heat loss ↩
-
Explore how tight-sealing lid mechanisms with silicone gaskets prevent heat escape through the flask opening ↩
-
Understand why 304 and 316 stainless steel are ideal materials for vacuum flasks due to their corrosion resistance and low thermal conductivity ↩
-
Learn about thermal bridges and why structural contact points between flask walls are the primary source of heat loss ↩
