I've been manufacturing insulated water bottles at Sibottle for over a decade, and one question consistently comes up from our B2B clients: "Which material should I choose for my custom water bottle project?" The answer isn't straightforward, and I've seen too many businesses make costly material decisions without understanding the full picture.

Just last month, a client came to us after their previous manufacturer delivered 10,000 bottles that failed thermal testing because of poor material selection. The insulated water bottle market has grown from $2.27 billion in 2024 to a projected $3.18 billion by 2034, but success requires more than riding the wave – it demands smart material choices.

This guide will help you navigate the complex world of insulated water bottle materials, whether you're launching a new brand, expanding your product line, or switching manufacturers.

The Core Materials Matrix - Performance vs. Cost Analysis

After manufacturing thousands of custom bottles for brands worldwide, I've learned that material selection is the foundation of every successful project. Let me break down your options based on real manufacturing data.

Stainless Steel: The Dominant Force in Insulated Bottles

Why 304 vs 316 Grade Choice Can Make or Break Your Margins

Here's something most people don't realize: virtually all quality insulated water bottles use either 304 or 316 stainless steel. At Sibottle, these two grades represent 98% of our production because they're specifically engineered for the double-wall vacuum insulation that makes bottles actually work.

The Reality of Insulated Bottle Materials:

Unlike single-wall bottles that might use various materials, insulated bottles require stainless steel's unique properties:

• Vacuum Compatibility: Only stainless steel maintains vacuum integrity long-term
• Thermal Performance: Essential for achieving 12+ hour hot and 24+ hour cold retention
• Structural Integrity: Withstands the internal pressure differential of vacuum insulation
• Corrosion Resistance: Prevents vacuum loss from internal oxidation

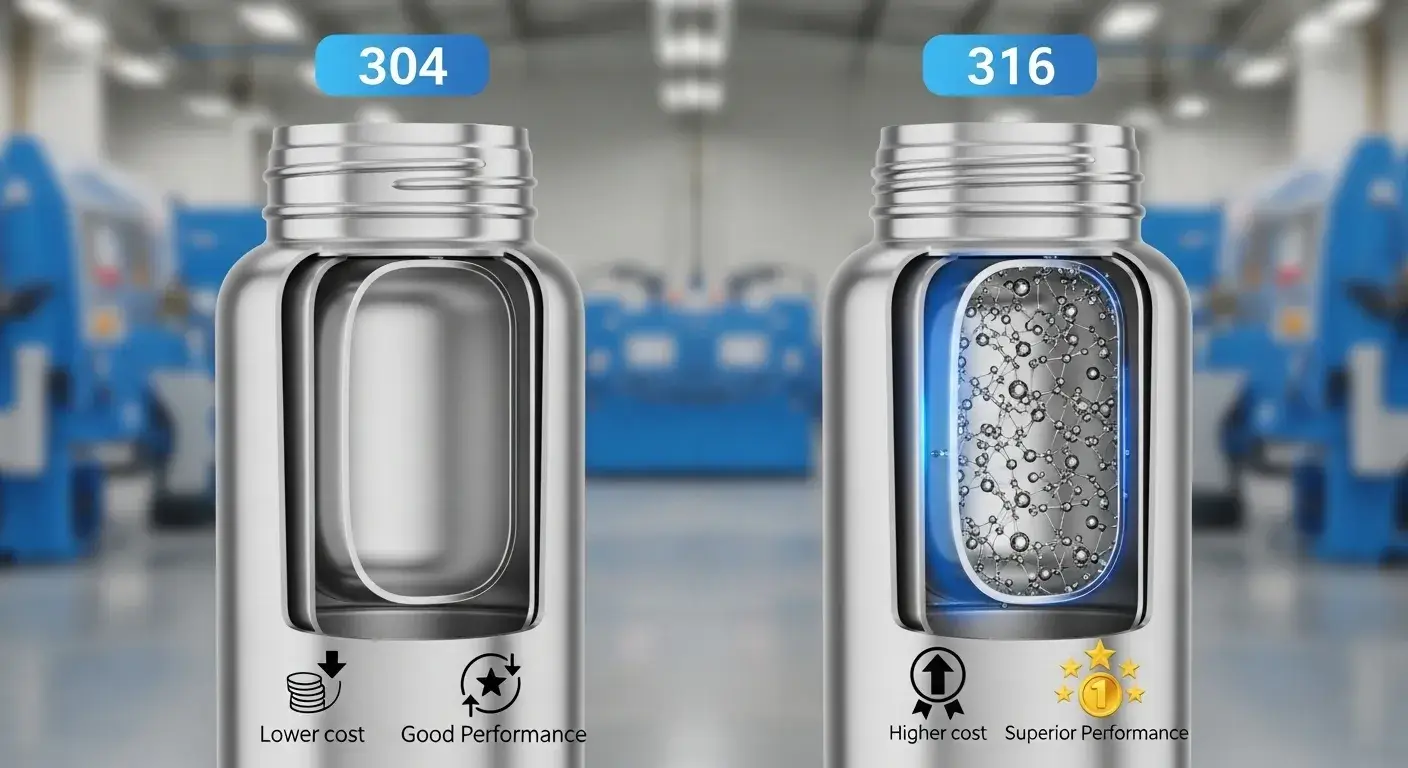

304 vs 316 Stainless Steel Comparison:

Grade	Composition	Cost Impact	Insulation Performance	Why We Use It
SS 304 (18/8)	18% Cr, 8-10% Ni	Standard pricing	Excellent (24+ hours cold)	Perfect for most insulated bottles
SS 316 (18/10)	+2-3% Mo addition	20-30% premium	Superior (maintains vacuum longer)	Premium insulated bottles, acidic beverages

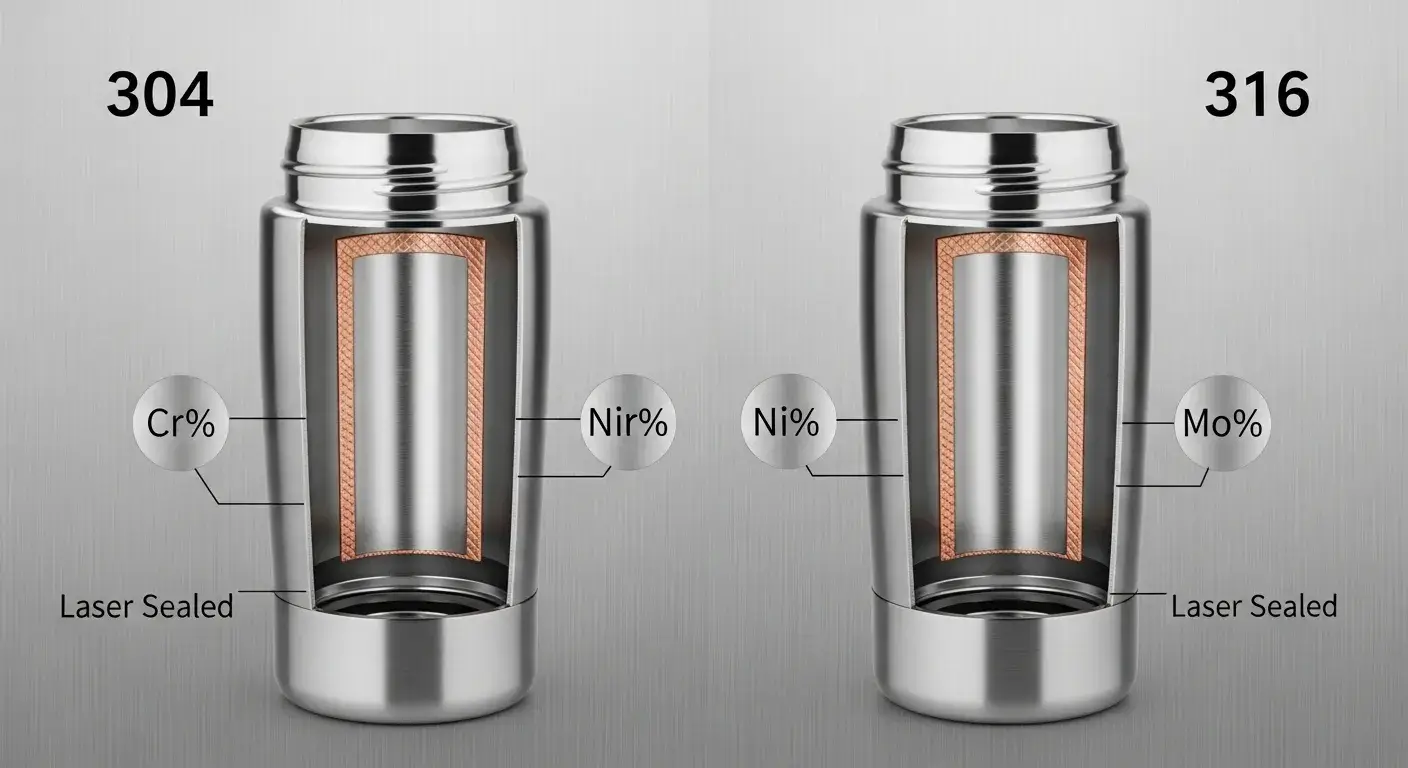

Our Manufacturing Process for Insulated Stainless Steel:

From our experience in stainless steel water bottle manufacturing, here's what happens in our facility:

1. Material Selection: 304 or 316 grade verification for vacuum compatibility
2. Double-Wall Forming: Precision deep drawing for inner and outer walls
3. Vacuum Creation: Achieving insulation levels below 10⁻⁶ mbar between walls
4. Copper Plating: Interior copper coating for enhanced thermal reflection
5. Sealing Process: Laser welding to maintain permanent vacuum seal

Real Client Example: A premium beverage brand chose 316 grade for their insulated line targeting acidic drinks. The additional molybdenum content prevented any metallic taste while maintaining superior thermal performance, justifying their 25% price premium in the market.

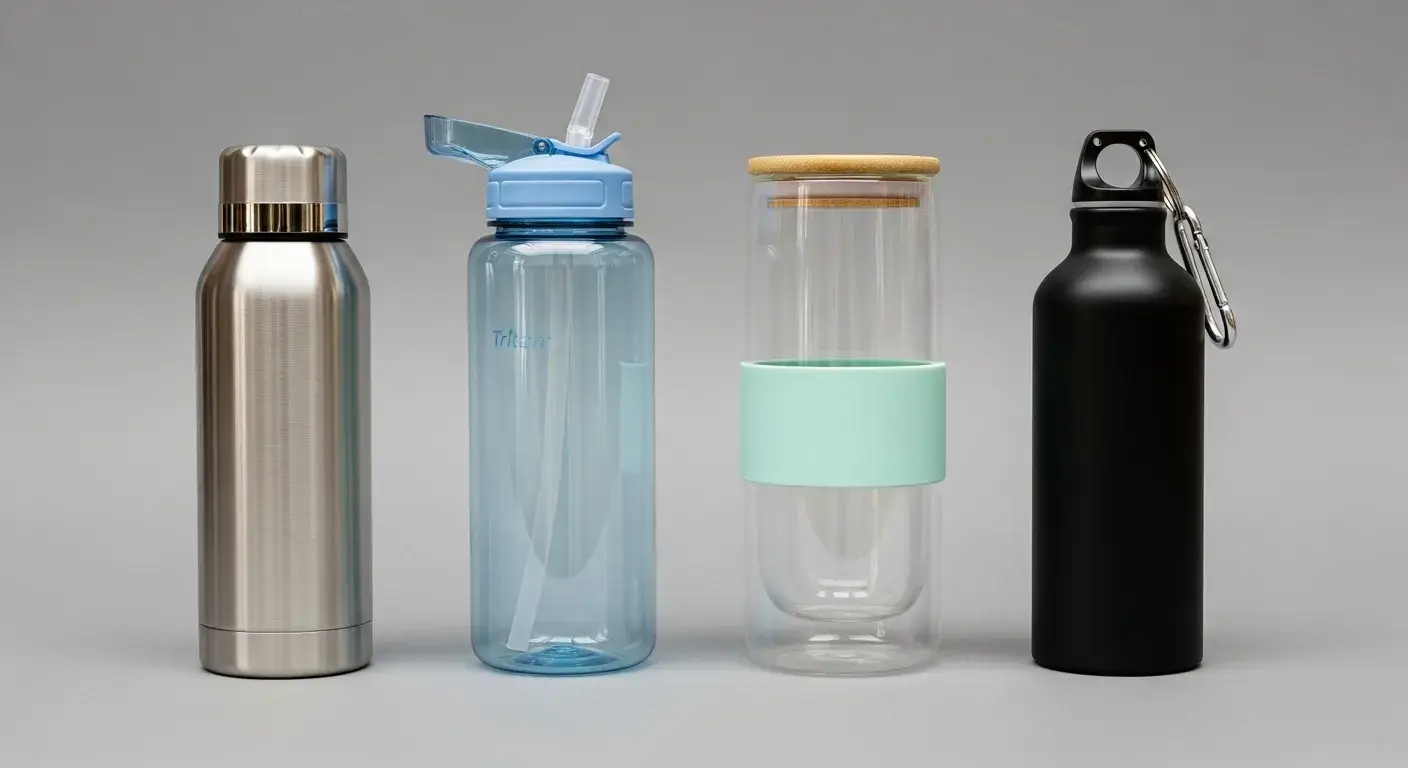

Alternative Materials: Understanding the Limitations for Insulated Bottles

Why Other Materials Struggle with True Insulation Performance

While I often get requests for other materials, it's important to understand why they're rarely suitable for genuinely insulated bottles.

Plastic Limitations for Insulation:

• Vacuum Challenges: Most plastics can't maintain vacuum seal integrity
• Temperature Range: Limited to single-wall or minimal insulation designs
• Performance Gap: Typically 4-6 hours vs. 24+ hours for stainless steel
• Permeability Issues: Gradual air infiltration destroys insulation over time

When We Source Plastic Alternatives:

Though we specialize in stainless steel insulated bottles, we can source plastic options for clients who specifically need:

• Budget promotional items (limited insulation expectations)
• Lightweight applications where insulation is secondary
• Transparent designs for visual appeal over performance

Glass and Aluminum Reality Check:

Glass Insulated Bottles:

• Extremely rare due to manufacturing complexity
• Double-wall glass requires specialized equipment
• Weight and fragility limit practical applications
• We can source through partners for very specific premium applications

Aluminum for Insulation:

• Single-wall aluminum cannot achieve true insulation
• Double-wall aluminum is cost-prohibitive
• Liner dependency creates quality control challenges
• We source aluminum primarily for non-insulated applications

The Insulation Performance Truth:

Material	Vacuum Capability	Hot Retention	Cold Retention	Market Reality
SS 304/316	Excellent	12+ hours	24+ hours	95% of quality insulated bottles
Plastic	Poor	2-4 hours	6-8 hours	Promotional/budget segment
Glass	Limited	4-6 hours	8-12 hours	Luxury niche only
Aluminum	None	N/A	N/A	Non-insulated applications

Emerging Materials: Future Possibilities with Current Limitations

Based on client inquiries and market trends, I'm seeing interest in sustainable alternatives, but the physics of insulation remains challenging.

Materials We Monitor:

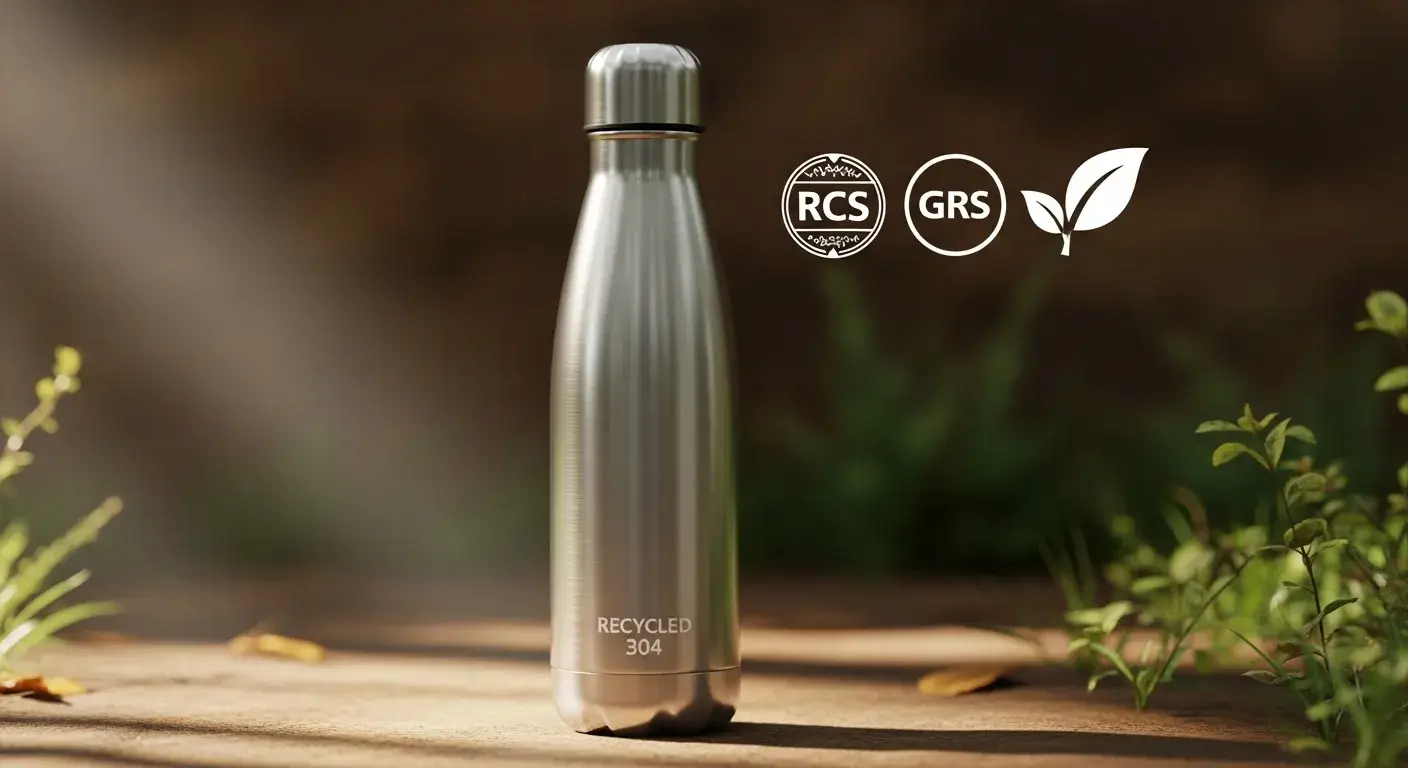

• Recycled Stainless Steel: Same performance, better sustainability story
• Bio-based Plastics: Limited to non-insulated applications currently
• Composite Materials: Still in R&D phase for vacuum applications

Honest Assessment: For true insulation performance, stainless steel remains the only viable option. We focus on making our stainless steel production more sustainable rather than compromising performance with inadequate materials.

Our Sustainability Approach:

• High-grade stainless steel for maximum product lifespan
• Recycled content in our steel sourcing when available
• Energy-efficient manufacturing processes
• Design for recyclability at end-of-life

Manufacturing Process Deep-Dive by Material

How Insulated Bottle Manufacturing Demands Stainless Steel Expertise

After producing thousands of vacuum-insulated bottles, I can tell you that manufacturing truly insulated bottles is fundamentally different from making regular containers.

Why Insulated Manufacturing is Specialized:

Vacuum Insulation Requirements:

• Precision Tolerances: Wall thickness variations under 0.1mm
• Welding Expertise: Leak-proof seals maintaining vacuum for years
• Material Purity: Contaminants can outgas and destroy vacuum
• Temperature Control: Heat management during forming prevents steel degradation

Our Stainless Steel Production Capacity:

Specification	Our Capability	Quality Standards	Monthly Capacity
304 Insulated Bottles	Full production line	8 quality checkpoints	45,000 units
316 Insulated Bottles	Specialized line	10 quality checkpoints	25,000 units
Custom Designs	Design & tooling	Full prototyping	5,000+ units
Quality Testing	24/7 monitoring	99.8% pass rate	Every bottle tested

Critical Manufacturing Steps for Insulated Bottles:

Working with our insulated steel tumbler manufacturing expertise, here's our proven process:

Phase 1: Material Preparation

1. Stainless steel grade verification (304 or 316)
2. Surface preparation and cleaning
3. Pre-forming quality inspection
4. Material traceability documentation

Phase 2: Double-Wall Formation

1. Inner wall deep drawing (multiple stages)
2. Outer wall formation and fitting
3. Dimensional verification and alignment
4. Pre-vacuum assembly preparation

Phase 3: Vacuum Creation and Sealing

1. Vacuum chamber evacuation (<10⁻⁶ mbar)
2. Copper plating application (when specified)
3. Laser welding seal creation
4. Vacuum integrity testing

Phase 4: Quality Validation

1. 24-hour thermal performance testing
2. Pressure resistance validation
3. Surface finish inspection
4. Final packaging and documentation

Safety, Compliance, and Risk Management

Meeting Global Standards for Insulated Stainless Steel Bottles

Compliance becomes more complex with insulated bottles because you're dealing with vacuum technology and long-term performance warranties. Here's how we ensure every bottle meets global standards.

Regulatory Framework for Insulated Bottles:

United States Requirements:

• FDA 21 CFR 177 (food contact surfaces - both inner walls)
• California Prop 65 (lead content in steel and welding materials)
• CPSIA (physical safety including vacuum seal integrity)

European Union Standards:

• EU Regulation 1935/2004 (food contact for double-wall construction)
• REACH compliance (steel composition and welding materials)
• Pressure Equipment Directive (vacuum vessel safety)

Asia-Pacific Regulations:

• China GB standards (vacuum bottle specific requirements)
• Japan Food Sanitation Law (thermal performance standards)
• Australia pressure vessel regulations

Stainless Steel Specific Testing:

304 Grade Compliance:

• Chromium migration: <0.25 mg/L under thermal stress
• Nickel release: <0.14 mg/cm²/week
• Lead content: <100 ppm (critical for vacuum seal materials)
• Vacuum integrity: Maintained over 5+ year lifespan

316 Grade Enhanced Testing:

• Molybdenum content verification (2-3%)
• Enhanced corrosion resistance validation
• Acidic beverage compatibility testing
• Premium grade certification documentation

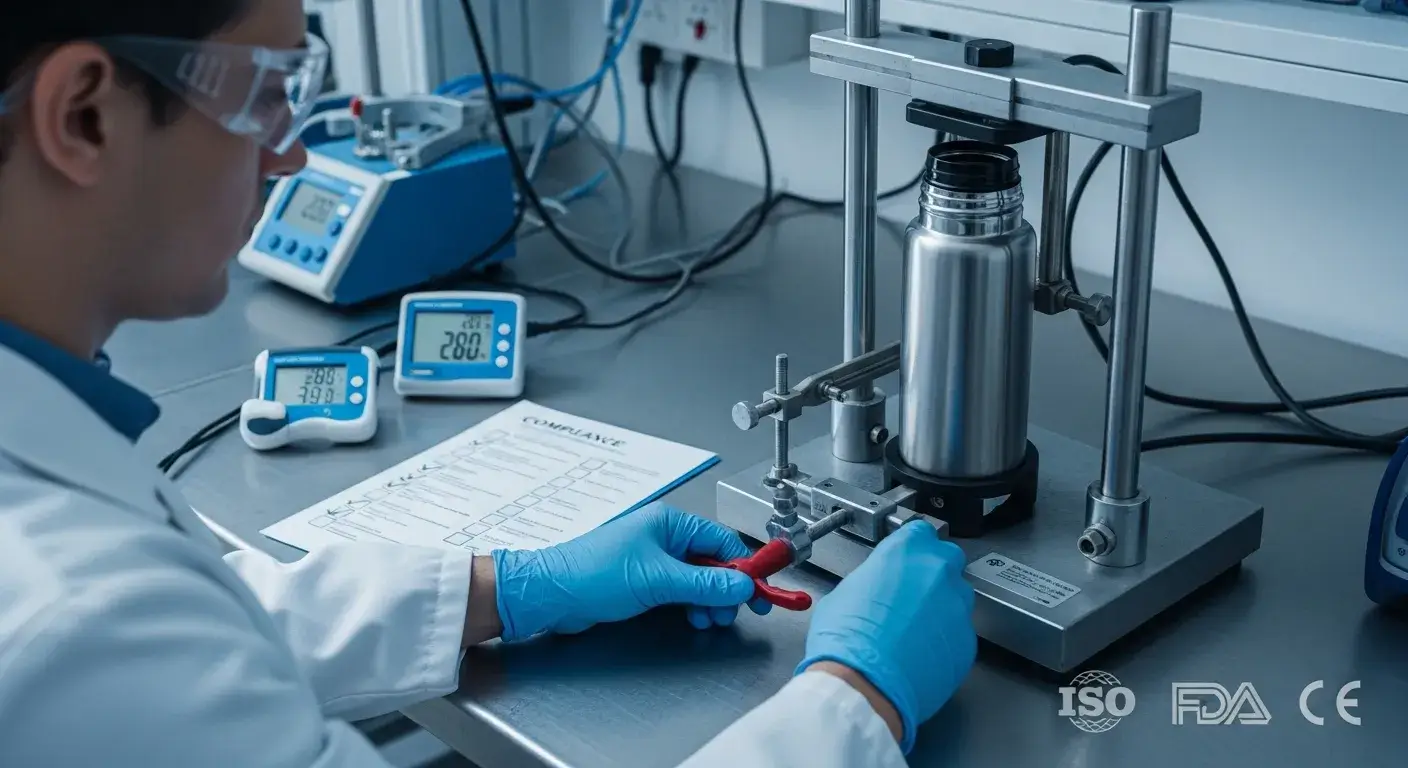

Our Comprehensive Testing Protocol:

Thermal Performance Standards:

• 24-hour hot retention: Minimum 65°C maintenance
• 24-hour cold retention: Maximum 10°C temperature rise
• Vacuum level monitoring: <10⁻⁸ mbar over 1 year
• Thermal cycling: 1000+ cycles without performance loss

Safety and Durability Testing:

• Drop testing: 2-meter concrete surface survival
• Pressure testing: 2x atmospheric pressure resistance
• Chemical resistance: 30-day beverage contact testing
• Long-term vacuum stability: 5-year accelerated aging

The FDA's stainless steel requirements specifically address vacuum-insulated containers, making compliance more stringent than regular bottles.

Sustainability and Market Positioning

Why Stainless Steel Insulated Bottles Lead in Environmental Impact

When you factor in the performance and lifespan of insulated bottles, the sustainability picture becomes clearer. Here's the real environmental data.

Lifecycle Impact of Insulated Bottles:

Factor	SS 304 Insulated	SS 316 Insulated	Single-Wall Alternatives
Production CO₂	2.8 kg	3.2 kg	0.8-1.2 kg
Lifespan	15+ years	20+ years	2-5 years
Performance	24+ hours cold	24+ hours cold	4-8 hours
Recyclability	95%+	95%+	10-80% depending
Replacement Frequency	Rare	Very rare	Every 2-3 years

True Environmental Impact Calculation:

When I calculate the actual environmental impact per year of use:

• 304 Insulated: 0.19 kg CO₂/year (2.8kg ÷ 15 years)
• 316 Insulated: 0.16 kg CO₂/year (3.2kg ÷ 20 years)
• Plastic Alternatives: 0.4-0.6 kg CO₂/year (including replacements)

Why This Matters for Your Brand:

• Authentic Sustainability: Real environmental benefits, not just marketing
• Consumer Education: Performance longevity supports eco-claims
• Premium Positioning: Quality justifies higher initial investment
• Corporate Responsibility: Measurable impact reduction for B2B clients

Client Success Example: A corporate wellness company switched from plastic promotional bottles to our 304 stainless steel insulated bottles. Despite 3x higher initial cost, they saved 60% over three years while dramatically improving employee satisfaction and brand perception.

Our Facility's Sustainability Metrics (Stainless Steel Focus):

• Renewable energy: 45% of production power
• Water recycling: 92% reuse rate
• Steel waste: <2% (high recycling efficiency)
• Local sourcing: 60% of materials within 500km

Market Intelligence and Future Trends

What Drives Insulated Bottle Purchase Decisions

After working with brands across 25 countries, I've learned that insulated bottle customers have different priorities than regular bottle buyers.

Consumer Behavior for Insulated Bottles:

Purchase Driver	Importance	Material Impact	Our Advantage
Thermal Performance	85%	Demands stainless steel	Our core expertise
Durability/Longevity	78%	Favors 316 over 304	We offer both grades
Brand Trust	65%	Quality manufacturing crucial	Proven track record
Design/Aesthetics	58%	Stainless steel versatility	Custom capabilities
Price Value	52%	Performance per dollar	Manufacturing efficiency

Regional Insulated Bottle Preferences:

North America (Premium Market):

• 316 stainless steel: 35% of insulated bottles
• 304 stainless steel: 60% of insulated bottles
• Performance expectations: 24+ hours cold retention
• Price acceptance: $25-50 for quality insulated bottles

Europe (Quality Focus):

• Sustainability requirements favor long-lasting stainless steel
• Performance standards often exceed US requirements
• 316 grade preference for premium positioning
• Regulatory compliance crucial for market entry

Asia-Pacific (Growing Market):

• 304 grade dominates due to cost sensitivity
• Performance expectations rising rapidly
• Corporate gifting drives bulk orders
• Customization requests very common

The Insulated Bottle Performance Evolution:

From my manufacturing experience, consumer expectations have evolved:

• 2020: 12 hours cold retention was acceptable
• 2022: 18 hours became standard expectation
• 2024: 24+ hours is baseline for quality brands
• 2025+: 30+ hours expected for premium positioning

This performance escalation reinforces why stainless steel remains the only viable option for serious insulated bottle brands.

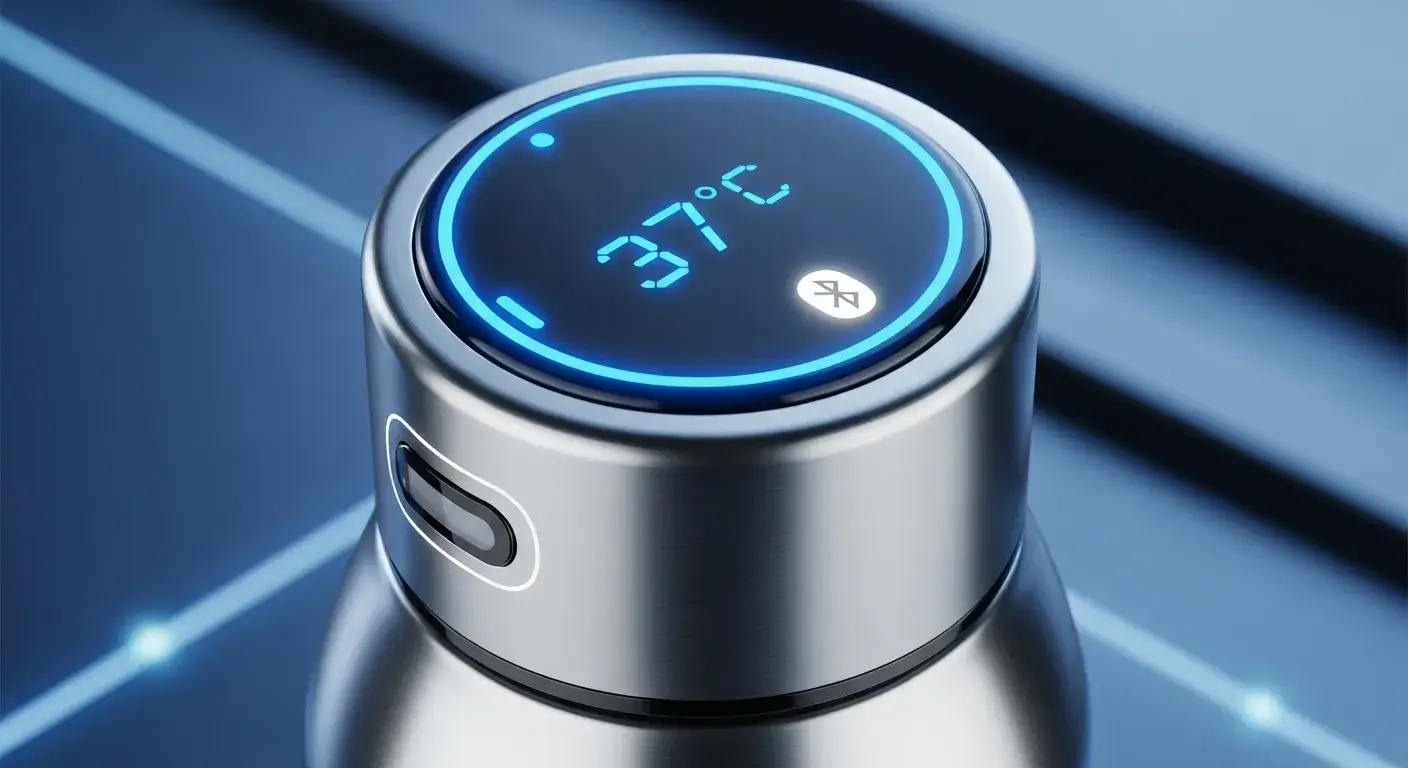

How Smart Technology Integration Affects Stainless Steel Choice

Smart bottle features are growing rapidly, but they don't change the fundamental need for stainless steel in insulated applications.

Technology Integration with Stainless Steel:

Why Stainless Steel Works for Smart Bottles:

• Thermal Management: Excellent heat dissipation for electronics
• Structural Integrity: Secure mounting for sensors and displays
• Premium Positioning: Smart features justify higher prices
• Durability: Electronics protection through robust construction

Smart Features We've Integrated:

• Temperature Sensors: Real-time thermal monitoring
• Hydration Tracking: Consumption pattern analysis
• App Connectivity: Bluetooth integration through RF windows
• LED Indicators: Status displays and reminders

Technical Considerations:

• RF Window Design: Strategic plastic inserts for wireless connectivity
• Sensor Placement: Non-interference with vacuum insulation
• Power Management: Battery housing in cap or base designs
• Waterproofing: Electronics protection with insulation performance

Client Example: A health tech startup needed smart insulated bottles with temperature monitoring. We designed 316 stainless steel bottles with integrated sensor housing, achieving both premium thermal performance and reliable data collection. Their customers paid 40% more for the combined benefits.

Cost Optimization Strategies

Real Economics of Insulated Stainless Steel Manufacturing

Let me share the actual cost structure for insulated bottles, because understanding these numbers helps you make better business decisions.

Comprehensive Cost Analysis (10,000 Unit Order):

304 Stainless Steel Insulated Bottles:

• Raw materials (304 steel): $0.70-1.10 per unit
• Vacuum insulation manufacturing: $0.50-0.85 per unit
• Tooling amortization: $0.12-0.25 per unit
• Quality testing and validation: $0.10-0.18 per unit
• Labor and overhead: $0.35-0.55 per unit
• Packaging and logistics: $0.18-0.28 per unit
• Total Manufacturing Cost: $1.95-3.21 per unit

316 Stainless Steel Insulated Bottles:

• Raw materials (316 steel): $0.90-1.45 per unit
• Vacuum insulation manufacturing: $0.55-0.95 per unit
• Tooling amortization: $0.15-0.30 per unit
• Quality testing and validation: $0.12-0.22 per unit
• Labor and overhead: $0.40-0.65 per unit
• Packaging and logistics: $0.20-0.32 per unit
• Total Manufacturing Cost: $2.32-3.89 per unit

Why Insulated Bottles Cost More:

• Precision Manufacturing: Vacuum sealing requires specialized equipment
• Quality Control: Thermal performance testing adds time and cost
• Material Requirements: Double-wall construction uses more steel
• Technical Expertise: Skilled workforce commands higher wages

Volume Impact on Pricing:

Order Quantity	Setup Cost Allocation	Unit Cost Reduction	Our Recommendation
1,000-2,500	High impact	Baseline pricing	Prototype/testing orders
2,500-5,000	Moderate impact	8-12% reduction	Small brand launches
5,000-15,000	Lower impact	15-22% reduction	Established brand growth
15,000+	Minimal impact	25-35% reduction	Major brand partnerships

Cost Optimization Strategies We Offer:

1. Design Efficiency: Optimize bottle geometry to reduce material waste
2. Production Planning: Batch scheduling minimizes setup costs
3. Quality Prevention: Upfront investment prevents expensive rework
4. Volume Commitment: Annual agreements provide better pricing
5. Technical Partnership: Design collaboration reduces development costs

Investment Comparison Reality:

When clients compare our stainless steel manufacturing to sourced alternatives:

• Plastic Sourced Bottles: $0.45-0.90 per unit (but 80% lower performance)
• Single-Wall Steel: $0.85-1.45 per unit (no insulation capability)
• Glass Sourced: $2.20-4.50 per unit (limited performance, high breakage)

Our Value Proposition: Yes, quality insulated stainless steel costs more initially, but the performance, durability, and customer satisfaction justify the investment.

Your Material Selection Framework

A Systematic Approach to Insulated Bottle Material Decisions

After helping hundreds of clients navigate material choices, I've developed a framework that recognizes the reality: for true insulation performance, you're choosing between 304 and 316 stainless steel.

The Insulated Bottle Decision Tree:

Step 1: Performance Requirements

• Question: Do you need genuine insulation performance (12+ hours)?
• Yes: Proceed to stainless steel grade selection
• No: Consider our sourcing network for promotional/budget options

Step 2: Grade Selection (304 vs 316)

• Standard Applications: 304 provides excellent performance at optimal cost
• Premium Positioning: 316 offers superior corrosion resistance and longevity
• Acidic Beverages: 316 prevents any metallic taste issues
• Marine/Extreme Use: 316 handles harsh environments better

Step 3: Performance Optimization

• Copper Lining: Enhanced thermal performance (+15% retention)
• Wall Thickness: Balanced for performance vs. weight
• Vacuum Level: Optimized for your performance targets
• Quality Grade: Standard vs. premium vacuum specifications

Our Consultation Process:

Initial Assessment (Free):

• Target market and price point analysis
• Performance requirements definition
• Volume and timeline planning
• Regulatory compliance review

Material Recommendation:

• 304 vs 316 analysis for your specific application
• Performance vs. cost optimization
• Technical specification development
• Tooling and manufacturing timeline

Prototype Development:

• Small batch samples for testing
• Performance validation and measurement
• Market testing support
• Final specification refinement

Decision Support Tools:

Performance Calculator:

• Thermal retention predictions
• Cost per performance hour analysis
• Competitive positioning assessment
• ROI calculations for grade upgrades

Risk Assessment:

• Manufacturing complexity evaluation
• Quality control requirements
• Compliance and certification needs
• Market acceptance probability

Client Success Framework:

• Similar project case studies
• Performance benchmarking data
• Market positioning strategies
• Long-term partnership planning

Conclusion: Mastering Insulated Bottle Material Selection

After a decade of manufacturing insulated water bottles, I've learned that material choice for truly insulated bottles isn't really a choice at all – it's about selecting the right grade of stainless steel for your specific application and market positioning.

The Fundamental Reality:
Quality insulated bottles require stainless steel. Whether you choose 304 or 316 grade depends on your performance requirements, target market, and budget, but both options deliver the vacuum insulation performance that consumers expect from modern insulated bottles.

Key Insights for Your Success:

• 304 Stainless Steel serves 95% of insulated bottle applications perfectly, offering excellent thermal performance at optimal cost
• 316 Stainless Steel provides enhanced corrosion resistance and longevity for premium positioning and specialized applications
• Alternative materials simply cannot deliver the vacuum insulation performance that defines quality insulated bottles
• Manufacturing expertise in stainless steel vacuum technology is essential for consistent quality and performance
• Long-term value comes from choosing the right grade initially rather than compromising on performance

Why Partner with Sibottle for Your Insulated Bottle Project:

Our focus on stainless steel vacuum insulation technology means you're working with specialists who understand every aspect of insulated bottle manufacturing:

• Deep Technical Expertise: Years of experience perfecting 304 and 316 grade vacuum insulation
• Quality Consistency: Proven processes delivering reliable thermal performance
• Cost Optimization: Efficient manufacturing that maximizes your investment value
• Performance Guarantee: Bottles that meet or exceed thermal retention specifications
• Complete Support: From material selection through production and quality validation

Your Path to Insulated Bottle Success:

The difference between a successful insulated bottle launch and a disappointing one often comes down to three factors: choosing the right stainless steel grade, working with experienced manufacturers, and understanding your market's performance expectations.

At Sibottle, we've helped brands achieve market leadership by focusing on what matters most: delivering consistent, superior thermal performance through expert stainless steel manufacturing.

Ready to Create Outstanding Insulated Bottles?

Don't compromise on the foundation of your product's success. Work with manufacturers who understand that insulated bottle performance starts with the right stainless steel choice and expert vacuum technology.

Start Your Project Today:

• Get Expert Guidance: Contact our team for personalized 304 vs 316 grade recommendations
• Learn Our Process: Explore our comprehensive stainless steel manufacturing guide
• See Our Capabilities: Visit Sibottle.com to discover our full range of insulated bottle manufacturing services
• About Our Expertise: Learn more about our specialized approach to vacuum insulation technology

Your insulated bottle success story begins with the right stainless steel choice. Let our expertise in 304 and 316 grade manufacturing transform your vision into market-leading products that deliver the thermal performance your customers demand.

Contact us today – let's discuss which stainless steel grade will make your insulated bottle project a success.
