Noticing cracks in stainless steel tubes? It's more common than you think—and can cause major failures if ignored.
Cracks in 304 stainless steel tubes often result from welding defects, poor material quality, chloride corrosion, and environmental stress.
Let's explore the real causes of cracking, how to spot them, and how to avoid costly damage.

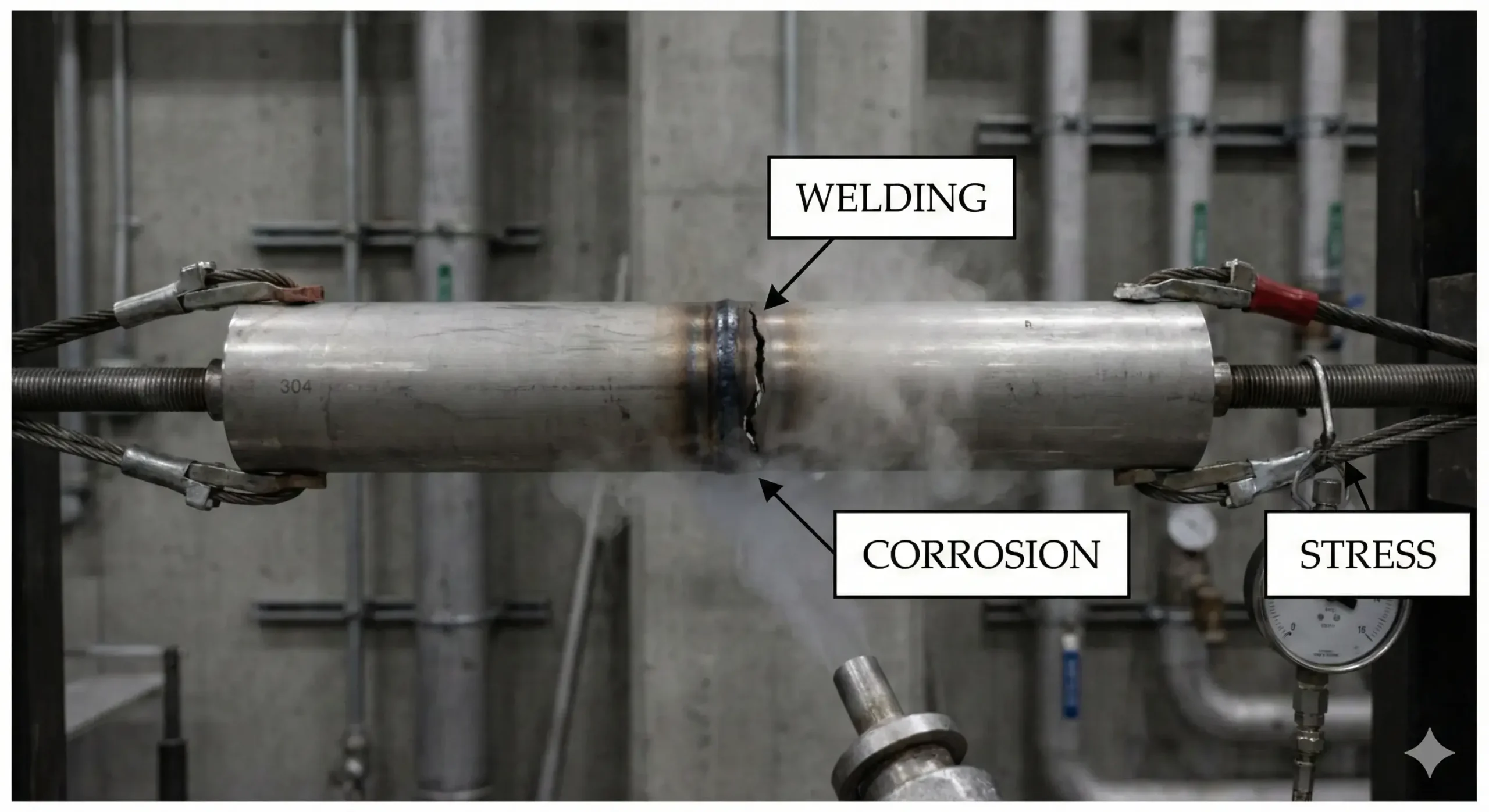

What Are the Common Causes of Cracking in 304 Stainless Steel Tubes?
Seeing cracks but unsure why? Let's break it down.
Cracking is commonly caused by welding issues, stress corrosion, poor materials, and processing mistakes.
One of the main culprits is stress corrosion cracking1, a specific mechanism where corrosive elements and tensile stress combine to initiate cracks. Processing mistakes like improper heat treatment or surface work can also create internal stresses that contribute to cracking.

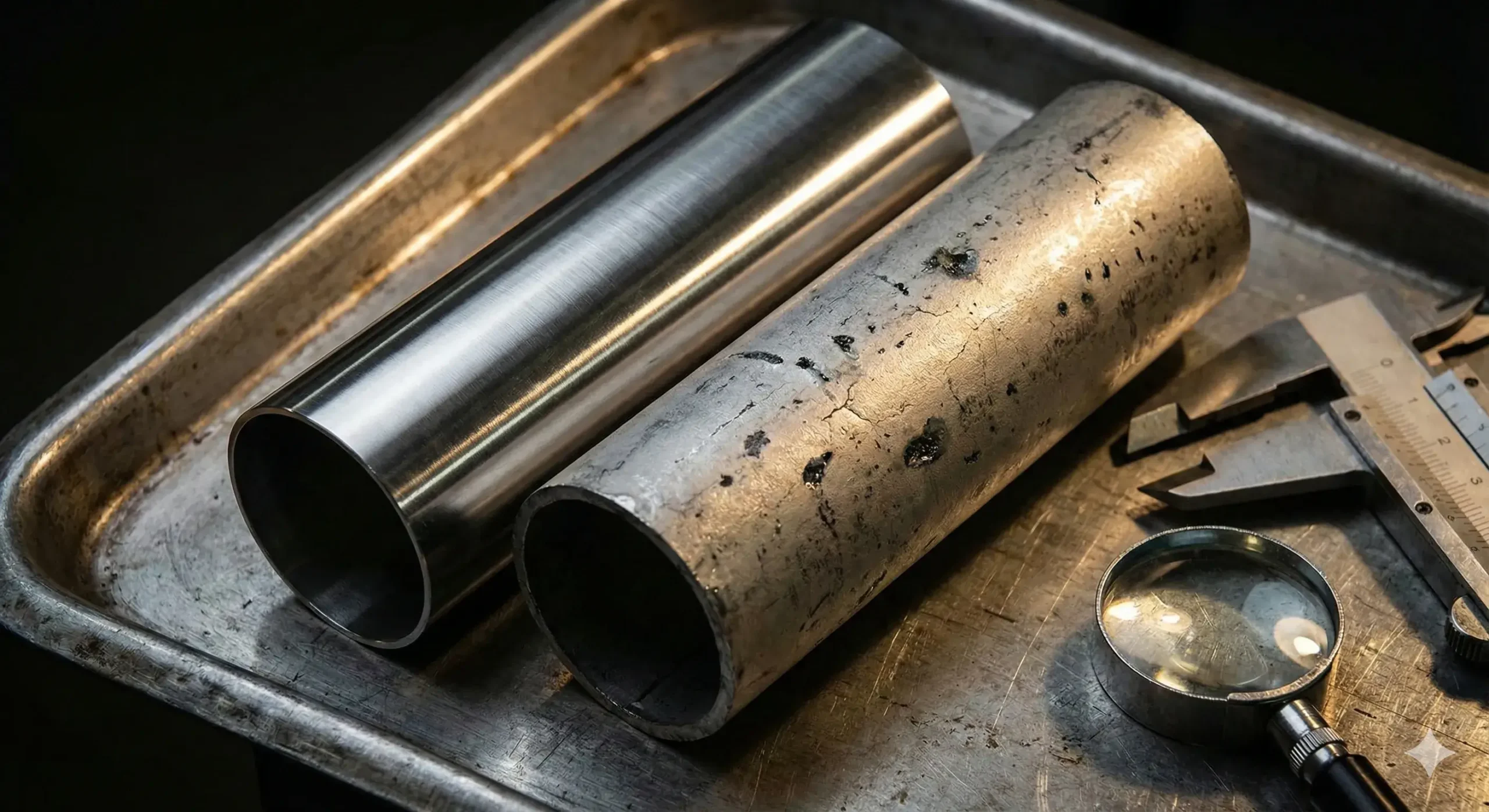

How Does Material Quality Affect Cracking in 304 Stainless Steel Tubes?
Starting with bad steel? That's a problem.
Low-quality or uncertified steel is more prone to cracking due to impurities, inconsistent composition, and poor processing.
Surface inclusions or uneven grain structure from unreliable suppliers reduce structural integrity. That's why testing and certified material are so important.

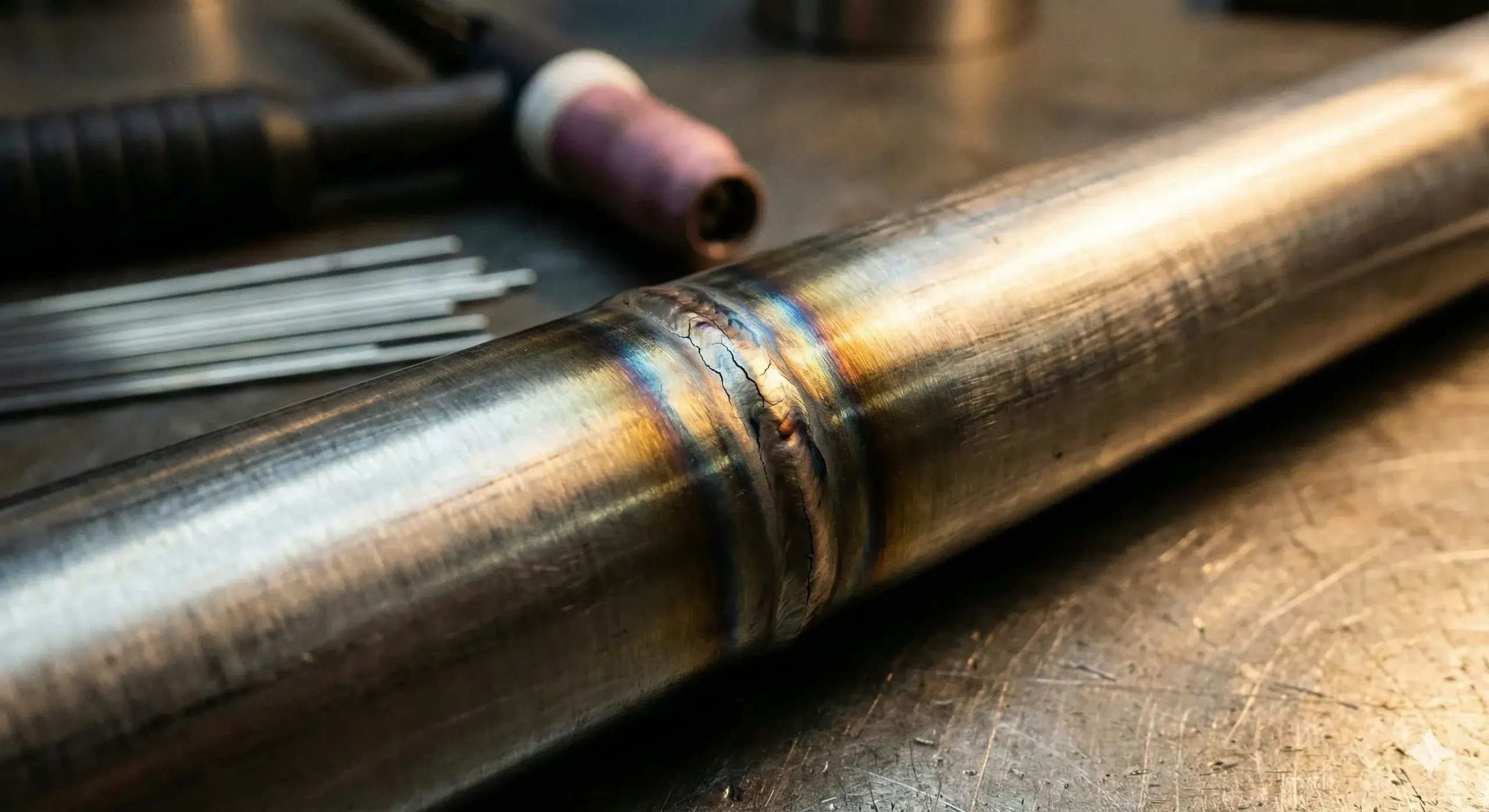

Can Welding Processes Lead to Cracks in 304 Stainless Steel Tubes?
Welding is often the trigger.
Improper welding introduces heat stress, which causes hot cracks, cold cracks, and lamellar tearing.
Excessive heat input can cause lamellar tearing in thick sections2, while poor filler choices can lead to hot cracks during solidification.

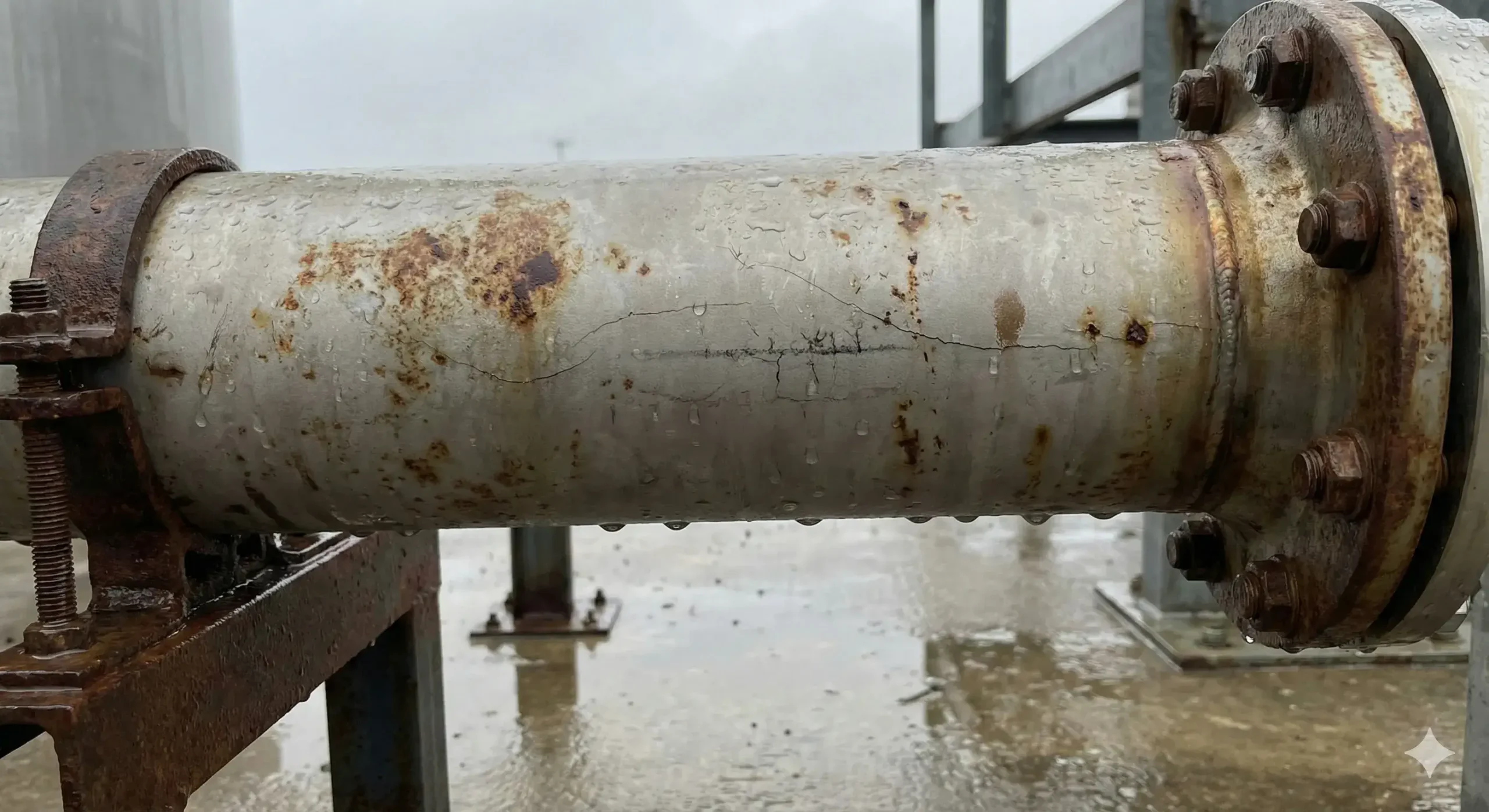

What Role Does Environmental Stress Play in Cracking of 304 Stainless Steel?
Think your tube failed on its own? The environment may be to blame.
High humidity, temperature, and corrosive elements like chlorides promote crack formation.
Chloride ions are notorious for damaging the protective oxide film, especially under cyclic temperature or pressure fluctuations.
How Does Stress Corrosion Cracking Occur in 304 Stainless Steel Tubes?
The worst cracks often start small.
Stress corrosion cracking (SCC) occurs when tensile stress and a corrosive environment combine to form slow-growing, dangerous cracks.
This type of corrosion often forms at weld heat-affected zones. Even low chloride concentrations can trigger3 it when combined with residual or applied stress.

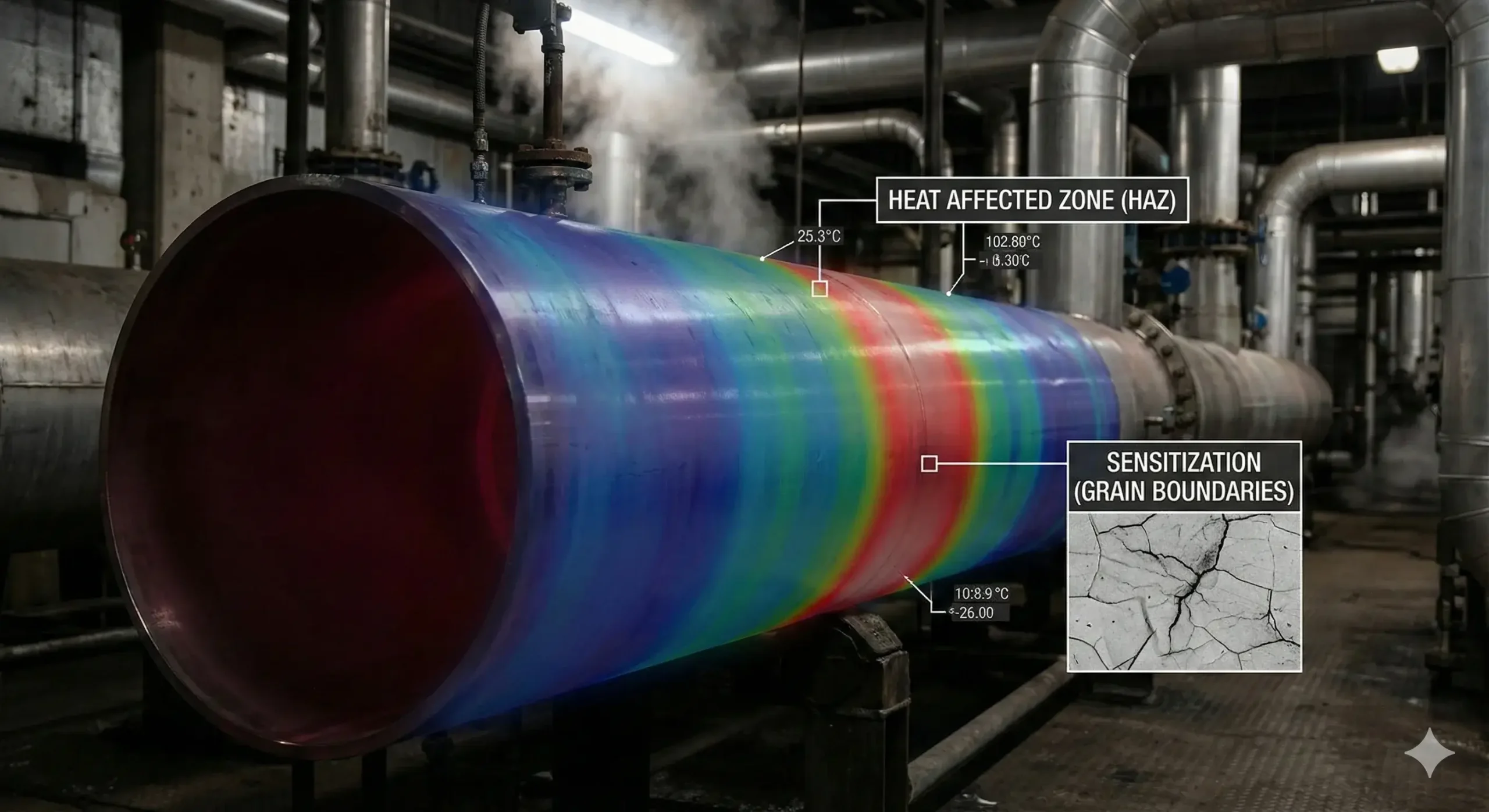

What Is the Impact of Temperature and Pressure on 304 Stainless Steel Cracking?
Higher isn't always better.
Prolonged exposure to elevated temperature and pressure accelerates fatigue, cracking, and sensitization in 304 tubes.
Carbide precipitation at grain boundaries4 becomes more likely above ~550 °C, weakening the structure under continued stress.

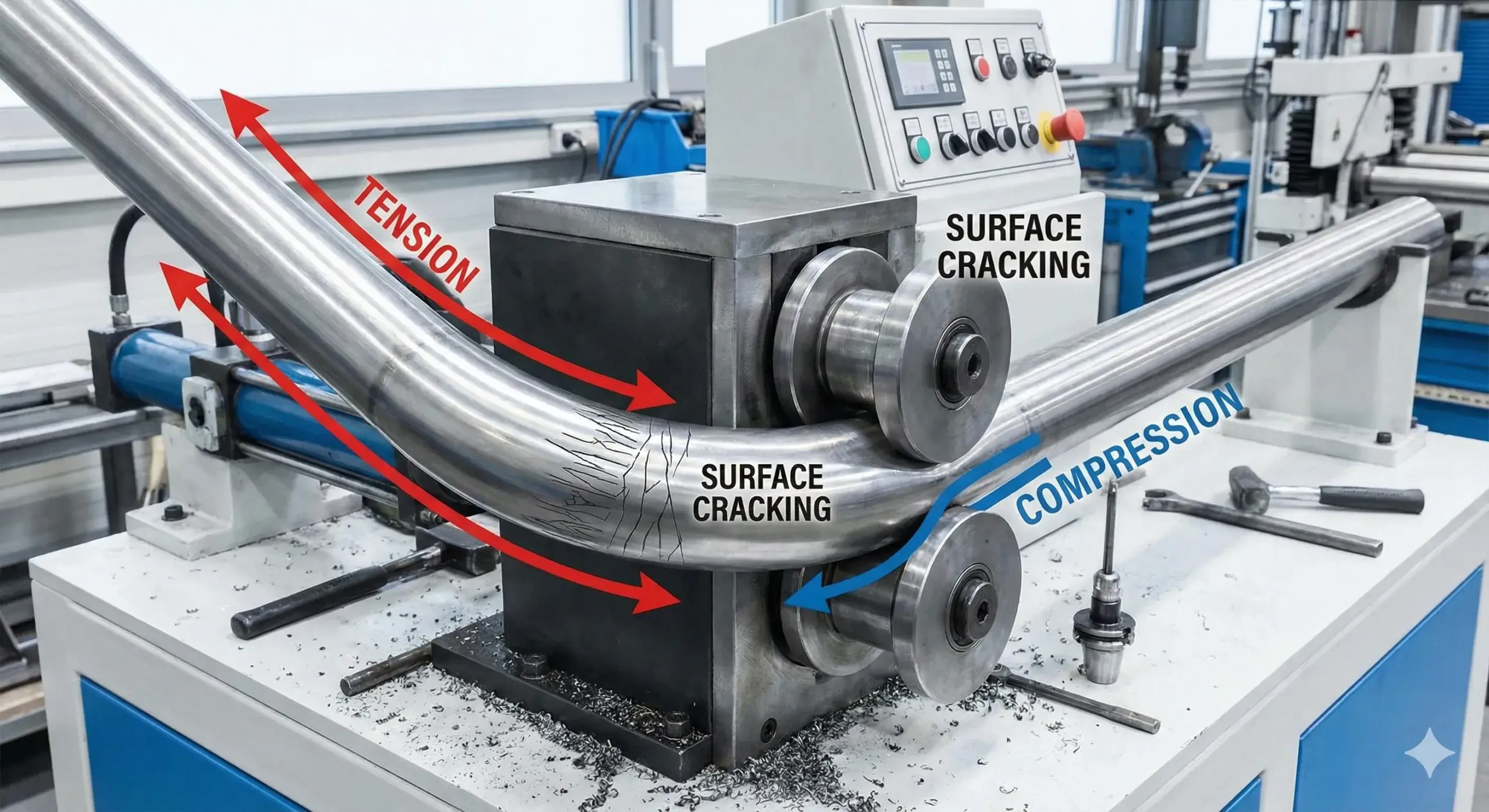

How Does Work Hardening and Processing Affect the Integrity of 304 Stainless Steel Tubes?
More polishing = more problems?
Cold working, forming, or excessive surface finishing can create internal stress that leads to cracks.
Cold work can lock in residual stress5—without proper annealing6, it increases the risk of fatigue or stress-related cracks.
What Are the Signs and Types of Cracks Found in 304 Stainless Steel Tubes?
Can't see the damage? Look closer.
Signs include visible fissures, leaks, odd reflections on polished surfaces, or total failure under pressure.
For hidden cracks, Ultrasonic or dye penetrant tests7 are recommended nondestructive methods to find surface or internal flaws.

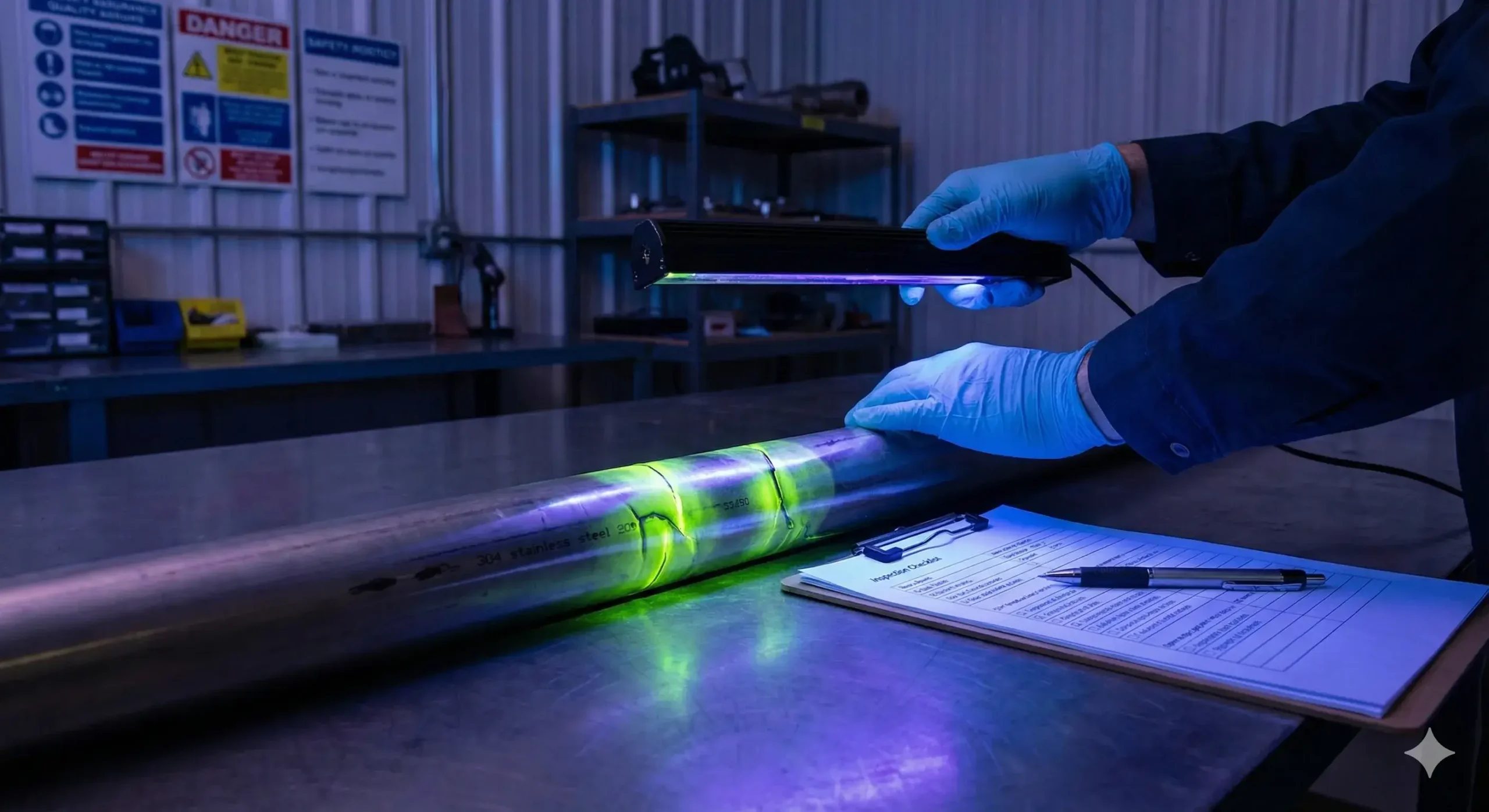

How Can Proper Maintenance and Inspection Prevent Cracking?
Avoiding cracks starts with vigilance.
Routine inspections and scheduled maintenance prevent small flaws from becoming major issues.
Combining visual checks with periodic nondestructive testing can help detect early-stage cracks before catastrophic failure.

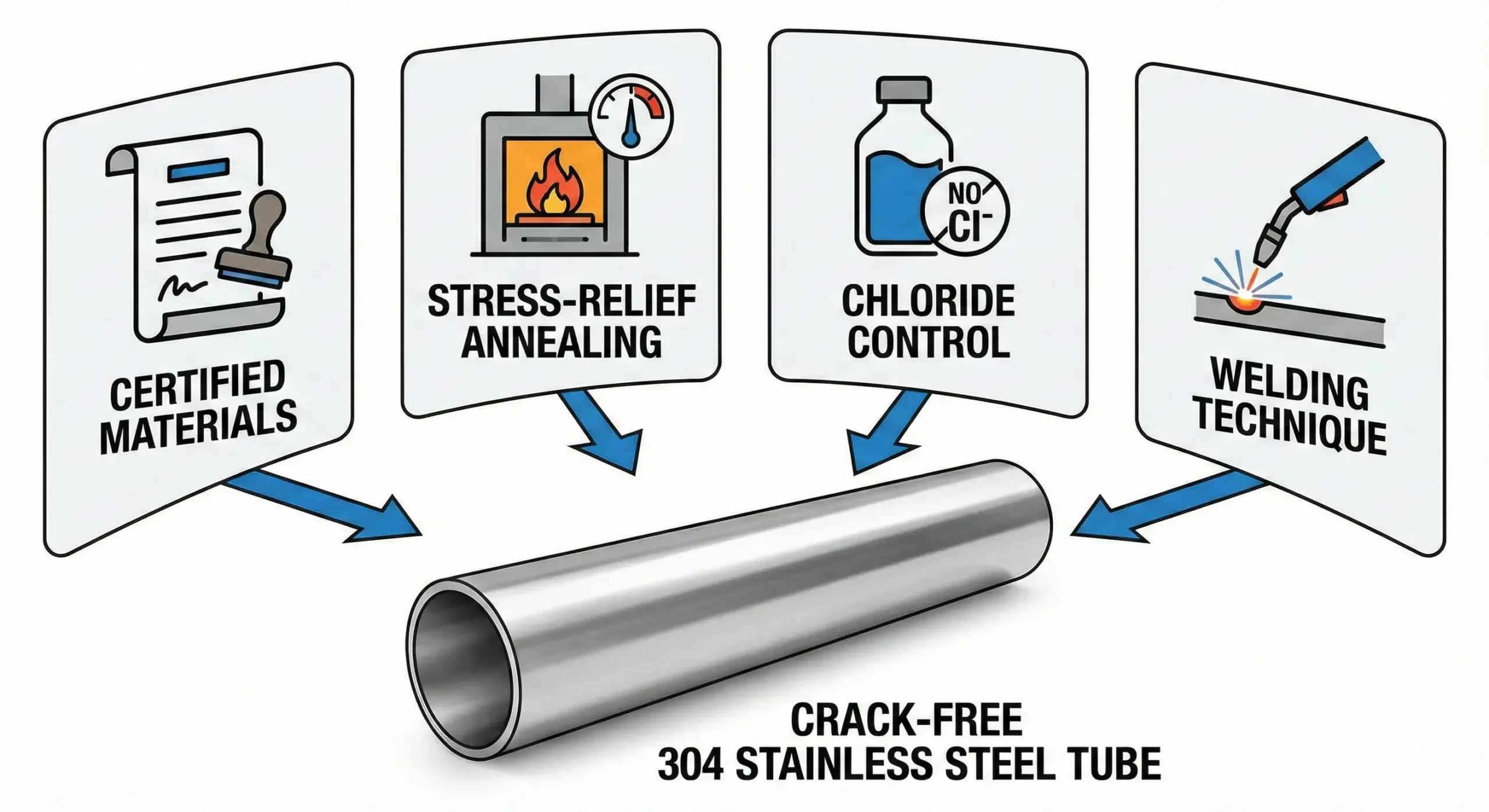

What Are the Best Practices to Avoid Cracking in 304 Stainless Steel Tubes?
Want to stop cracks before they start? Follow these tips.
Use high-quality materials, proper welding, stress control, and avoid chloride exposure.
Material quality, welding technique, and stress control are all interconnected—overlooking any one of these can create a failure path.
Conclusion
Cracks in 304 tubes come from poor welding, bad materials, and harsh environments—prevention starts with quality and care.
Frequently Asked Questions
Why does 304 stainless steel crack during welding?
It cracks due to thermal stress, improper heat control, or poor filler materials.
What is stress corrosion cracking in 304 stainless steel?
It's cracking caused by chloride exposure and internal stress, often invisible until failure.
Can high temperature cause cracking in 304 stainless steel tubes?
Yes. High heat accelerates sensitization and stress-relief cracking.
How does chloride cause cracking in stainless steel?
Chlorides weaken the protective oxide layer, allowing localized corrosion and cracks to form.
What are the signs of cracking in stainless steel tubes?
Leaks, surface fissures, discoloration, or rupture under pressure.
How can cracking in 304 stainless steel be prevented?
Use quality material, correct welding practices, and inspect regularly.
Does work hardening cause cracks in stainless steel?
Yes. Cold forming increases brittleness and residual stress, making cracks more likely.
What types of cracks occur in 304 stainless steel tubes?
Hot cracks, cold cracks, reheat cracks, intergranular and transgranular stress corrosion cracks.
How does material quality affect cracking in stainless steel?
Poor-quality steel has more defects and inconsistencies, making it easier to crack.
What inspection methods detect cracks in stainless steel tubes?
Ultrasonic, dye penetrant, radiographic, and visual inspections are most effective.
Footnotes:
-
Stress corrosion cracking (SCC) is a failure mechanism where 304 stainless steel[^8] develops cracks under the combined influence of tensile stress and a corrosive environment, particularly chloride-containing solutions. At temperatures above 60°C (150°F) with chloride concentrations as low as 10 ppm, SCC can occur in heat-affected zones near welds where residual stresses are highest, making it especially dangerous because cracks can grow slowly and remain undetected until catastrophic failure occurs. ↩
-
Welding defects including hot cracks, cold cracks, and lamellar tearing[^9] represent the most common and dangerous weld-related failures in stainless steel tubes. Hot cracks form during high-temperature solidification due to thermal shrinkage, cold cracks develop hours or days after welding from hydrogen embrittlement, and lamellar tearing occurs in thick plates when perpendicular shrinkage stresses separate layered inclusions along the rolling direction. ↩
-
Chloride-induced stress corrosion cracking in 304 stainless steel can be initiated at surprisingly low chloride levels when combined with tensile stress and moderate temperatures. Research shows that failures have occurred in environments with as little as 10-100 ppm chlorides, particularly in areas where evaporation concentrates chlorides locally, making proper environmental control and material selection critical for preventing SCC in service applications. ↩
-
Sensitization through carbide precipitation occurs when 304 stainless steel is exposed to temperatures between 425-815°C (800-1500°F), causing chromium carbides (Cr₂₃C₆) to precipitate at grain boundaries and depleting adjacent areas of chromium below the 12% minimum needed for corrosion resistance. This creates chromium-depleted zones highly susceptible to intergranular corrosion and stress corrosion cracking, particularly in welded heat-affected zones. ↩
-
Cold working processes like bending, drawing, rolling, or surface finishing introduce residual stresses by increasing dislocation density and creating non-uniform plastic deformation throughout the material. These internal stresses can exceed 70% of the material's yield strength and make the steel significantly more susceptible to stress corrosion cracking, requiring stress-relief annealing to restore stability and corrosion resistance. ↩
-
Proper annealing (solution annealing) of 304 stainless steel involves heating to 1010-1120°C (1850-2050°F) followed by rapid water quenching, which dissolves chromium carbides, eliminates work hardening effects, reduces residual stresses, and restores the steel's original ductility and corrosion resistance. This heat treatment is essential after welding heavy sections or extensive cold working to prevent sensitization and maintain optimal material properties. ↩
-
Nondestructive testing methods including ultrasonic testing and liquid penetrant (dye penetrant) inspection are essential for detecting cracks in stainless steel tubes. Dye penetrant testing uses capillary action to draw fluorescent or visible dyes into surface-breaking defects, making micro-cracks visible, while ultrasonic testing uses high-frequency sound waves (0.5-5 MHz) to detect both surface and subsurface flaws by measuring wave reflections from discontinuities. ↩
